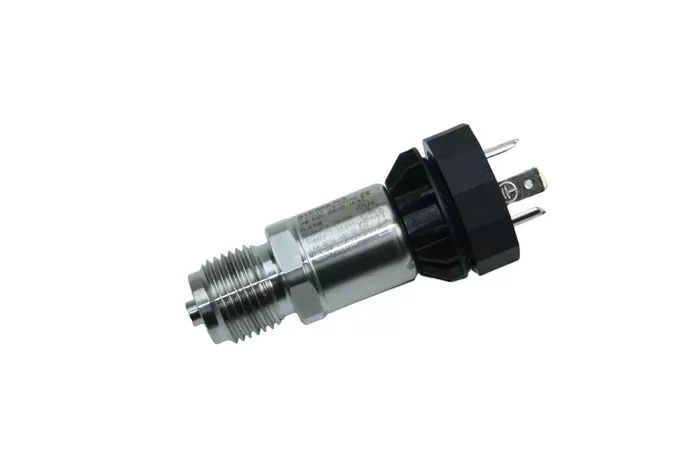

7MF1565-3BE00-1AA1

 SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 4 bar, Overload- pressure 10 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2″ male to EN 837-1 (1/2″ BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
Compare
Categories: ,

Description

Manufacturer Siemens
Range Sitrans
Product phase Active
Dimensions (cm) 16,50 x 4,50 x 7,20
Weight (kg) 0.2
Commodity Code 85389091
Export Control Regulations (ECCN) N
Country of Manufacture Germany
