BC Series

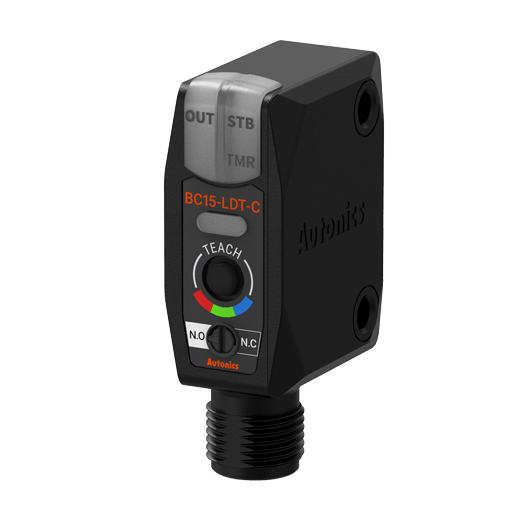

BC Series Color Mark Sensors

The BC series color mark sensors offer outstanding color matching accuracy for highly reliable and stable color detection. The sensors generate RGB light emitting diodes with 12-bit resolution processing for high color matching accuracy and offer 2 different detection modes with 3-step sensitivity adjustment. The W 1.24 x L 6.7 mm spot size allows the sensors to detect tiny targets and color marks. With an IP67 protection structure, the sensors can provide stable and error-free operation even in wet or dusty environments.

Compare

Description

Main features

  • Outstanding color matching accuracy
    • – RGB light emitting diodes and 12-bit resolution
    • – 2 detection modes (color only/color+intensity)
    • – 3-step sensitivity adjustment for each mode (fine, normal, rough)
  • External light interference reduction minimizes errors and allows stable detection
  • Check reference color with teaching indicator (patent) *
  • Operation indicator (red LED), stability indicator (green LED), timer indicator (orange LED)
  • Configure operation functions with external input from wiring
  • W1.24×L6.7mm spot size for detection of tiny targets and color marks
  • IP67 protection structure (IEC standard)



Korea Patent Registration 10-0459864

Full Color Spectrum Detection

Color Only, Color+Intensity

Various Detection Modes

Display Reference Color

Compact Spot Size

Color match/Mismatch Output Mode Switch

Improved Noise Immunity

IP67

Protection Rating

Color mark Sensors from Autonics

The BC series color mark sensors detect colors of surfaces. The sensors emit RGB (red, green, and blue) LED light and calculate the reflected light by RGB ratio to check for a match with the set reference color.

  • Color mark Sensors from Autonics

High Color matching Accuracy

  • High Color matching Accuracy

    RGB (Red/Green/Blue) Light Emitting Diodes

    The BC series generates and emits red, green, and blue light emitting diodes for high level of color matching accuracy. With 12-bit resolution processing, the sensors are capable of 99.2% (average) color matching accuracy.

  • C Mode (match color ratio), C+I Mode (match color + intensity  ratio)

    Two Detecting Modes and 3-Step Sensitivity Adjustment

    The BC series sensors are capable of C (color only) mode and C+I (color+intensity) mode for various applications. Fine, normal, and rough sensitivity settings are available in both modes, providing even more flexibility for users.

Check Reference Color with Teaching Indicator

After setting the reference color on the sensor, a similar shade of color will be displayed On the teaching indicator. Users can easily identify the reference color without having to re-teach the unit.

The teaching color and the color displayed on the teaching indicator may differ depending on environment conditions. (gloss, reflection angle, material, etc.)

Check Reference Color with Teaching IndicatorSee below for more details

Various Status Indicators

Operation indicator (red LED) and stability indicator (green LED) allows users to quickly identify the operation status of the sensors.

Operation Indicator, Stability Indicator

Output Mode Switch (Color Match/Mismatch)

The output mode can be switched between color match (N.O) and color mismatch (N.C) modes using the output mode switch.

Output ON With color MATCH, Output ON With color MISMATCH

Detect Tiny Targets and Color Marks

The compact sized (W16×L37mm) sensors feature W1.24×L6.7mm spot size for detection of tiny targets and color marks. (Detection distance : 15mm)

Detect Tiny Targets and Color Marks

OFF Delay Timer

The 40ms OFF delay timer allows stable detection of fast moving targets.

OFF Delay Timer

IP67 Protection Structure

IP67 protection structure allows stable and error-free operation even in wet or dusty environments.

IP67 Protection Structure
