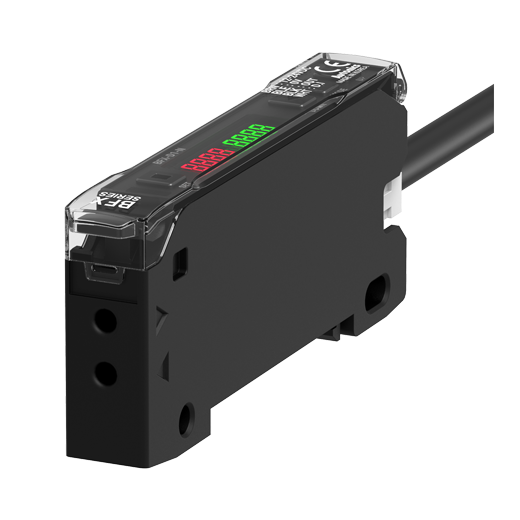

Description
Main features
- LCD dual display for displaying present value and set value
- High resolution (1/10,000) for detecting tiny targets
- Ultra-fast response speed (50 ㎲) for detecting fast moving targets
- 5 response speeds
: Ultra-fast mode (50 ㎲), fast mode (150 ㎲), standard mode (500 ㎲), long-distance mode (4 ms), ultra-long-distance mode (10 ms) - Saturation prevention function: prevent errors from saturation of received light
- External input function
: emitter OFF, remote sensitivity setting, peak value reset, output ON/OFF/MAINTAIN, energy saving mode OFF functions - Various sensitivity settings
: Manual sensitivity setting (fine-adjusting sensitivity)
: Teaching sensitivity setting (Button/external input – auto-tuning, one-point teaching, two-point teaching, position teaching) - Slim and compact design (W 10 x H 30.6 x L 70.5 mm)
Dual Display
High-Speed Response
Simple Sensitivity Adjustment
Saturation Prevention Function
Various Sensitivity Settings
Dual Digital Display
With the dual digital display screen, users can easily identify the present value (PV) and set value (SV)
High-Speed Response Rate of 50 ㎲ for Detecting Fast Moving Targets
The sensors feature 5 different response speeds: Ultra-fast mode (50 ㎲), fast mode (150 ㎲), standard mode (500 ㎲), long-distance mode (4 ms), ultra-long-distance mode (10 ms). The units can detect fast moving targets in ultra-fast mode (50 ㎲).
Saturation Prevention Function
When detecting transparent objects or if the target moves out of position, the received light intensity may increase. The saturation prevention function prevents errors from light saturation by adjusting to the difference in the received light.
Simple Sensitivity Adjustment
Simply press the SET key once to activate automatic sensitivity teaching. Teaching sensitivity can be set in auto-tuning, one-point teaching
Various Sensitivity Setting Modes
Depending on the environment, users can choose between auto-tuning, one-point teaching (maximum sensitivity), two-point teaching, and position teaching modes.
Inverted Display
The display direction can be inverted depending on installation settings for easier status readings.
