BK/RK-Series MCB

Miniature Circuit Breakers are placed directly above the load and are designed to protect final loads.
They are ideal for protection of circuits in industrial, commercial, and residential sectors, and ensures the following functions: protection against short-circuit and overload currents, isolation, and protection against indirect contact.

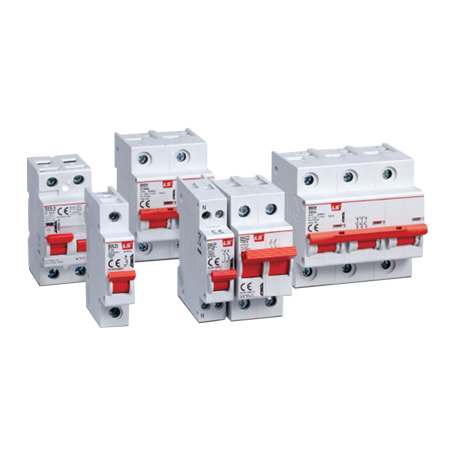

Miniature Circuit Breakers

1) BK series.
– BKN : 1 to 4pole up to 63A & 6kA (IEC60898-1) -BKN-b: 1 to 4pole up to 63A 10kA (IEC60898-1)
– BKH : 1 to 4pole from 63 to 125A 10kA (IEC60947-2)

2) BF series – 6~50A Max 2.5kA at 415VAC (IEC60947-2)

3) BS series – 6~30A, 1.5kA at 110/220VAC 4)

Residual Current Devices

1) RK series -RKN type (RCCB)
– Conforming to IEC61008, Protection against ground fault, 25~63A, 30, 100, 300mA

2) RKP type (RCBO)
– Conforming to IEC61009, Protection against ground fault & overcurrent, 3~32A, 30, 100, 300m
