BS5 Series

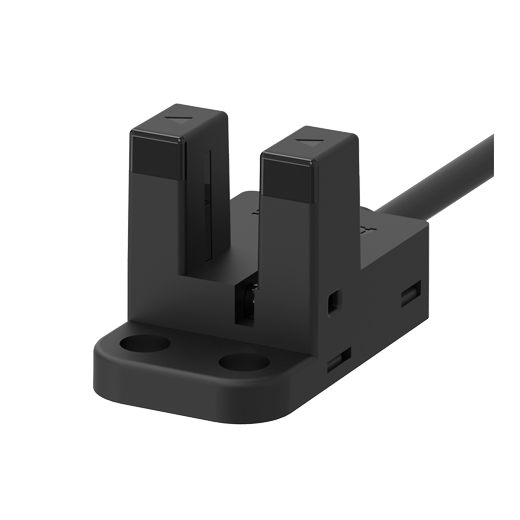

BS5 Series Groove-Depth 9mm Photomicro Sensors

The BS5 series photomicro sensors are available in 8 different shapes (K, T, V, L, Y, F, R, TA types), offering maximum flexibility for various user applications and installation settings. The sensors are designed to minimize errors occurring from foreign substances. The sensors offer high visibility with operation indicators viewable from multiple directions

Compare

Description

Main features

  • Various shapes available for installation flexibility (K, T, V, L, Y, F, R, TA types)
  • Minimize detection errors and improved visibility
    – Sensing side and body level has been improved to minimize detection errors occurring from foreign substances
    – Added operation indicators viewable from multiple directions
  • Indicator ON when light received and indicator ON when light blocked models available
  • High shock and vibration resistance
    – shock: 15,000 m/s² (approx. 1,500G), vibration: 10 to 2,000 Hz (1.5 amplitude)
  • Switch between Light ON and Dark ON modes using control terminal/wire
  • High-speed response frequency: 2kHz



Korea Design Registration 30-1066605, 30-1066606

Compact Size

Cable Type

Connector Type

2kHz

High Speed Response

Protection Window

High Durability

Various Shapes Available Offering Installation Flexibility

8 different shape models are available for installation in diverse applications.

  • Cable Type

    BS5-1
  • Connector Type

    BS5-2

Indicator ON when Light Received and Indicator ON when Light Blocked Models Available

Indicator ON when light received and indicator ON when light blocked models are available depending on user needs or applications.

  • Previous

    BS5-3

    Indicator ON When Light Received (BS5-□□M-□)

    Previous models only available in indicator ON when light received models.

  • Added

    BS5-4

    Indicator ON When Light Blocked (BS5-□□R-□)

    Indicator ON when light blocked models have been added

  • Operation Indicator on Multiple Directions

    The operation indicators are viewable from multiple directions allowing users to identify operation status in various environment settings.

    BS5-5
  • High Resistance to Shock and Vibration

    The sensors offer vibration resistance up to 2,000 Hz and shock resistance up to 1,500, which allows for installation in harsh environments.

    BS5-6
