Digital Measuring Instruments

Description

Digital measuring instruments measure the electrical parameters in your facility with high precision and reliability.

Digital Voltmeters and Digital Ammeters

Digital voltmeters measure voltages and digital ammeters measure currents; They perform digital processing, conversion and imaging.

They can also compare input values to set values, transfer data, and perform other functions.

Digital Multimeter

Sigma Multimeters are produced in accordance with TS EN 60051-2 standards and measure the electrical parameters of the network to which it is connected.

Technicial Specifications:

– 3 Phase current, voltage and frequency measurement

– Minimum and maximum demand values of current and voltage

– Class 0.5 measurement accuracy

– Production in 96*96mm size

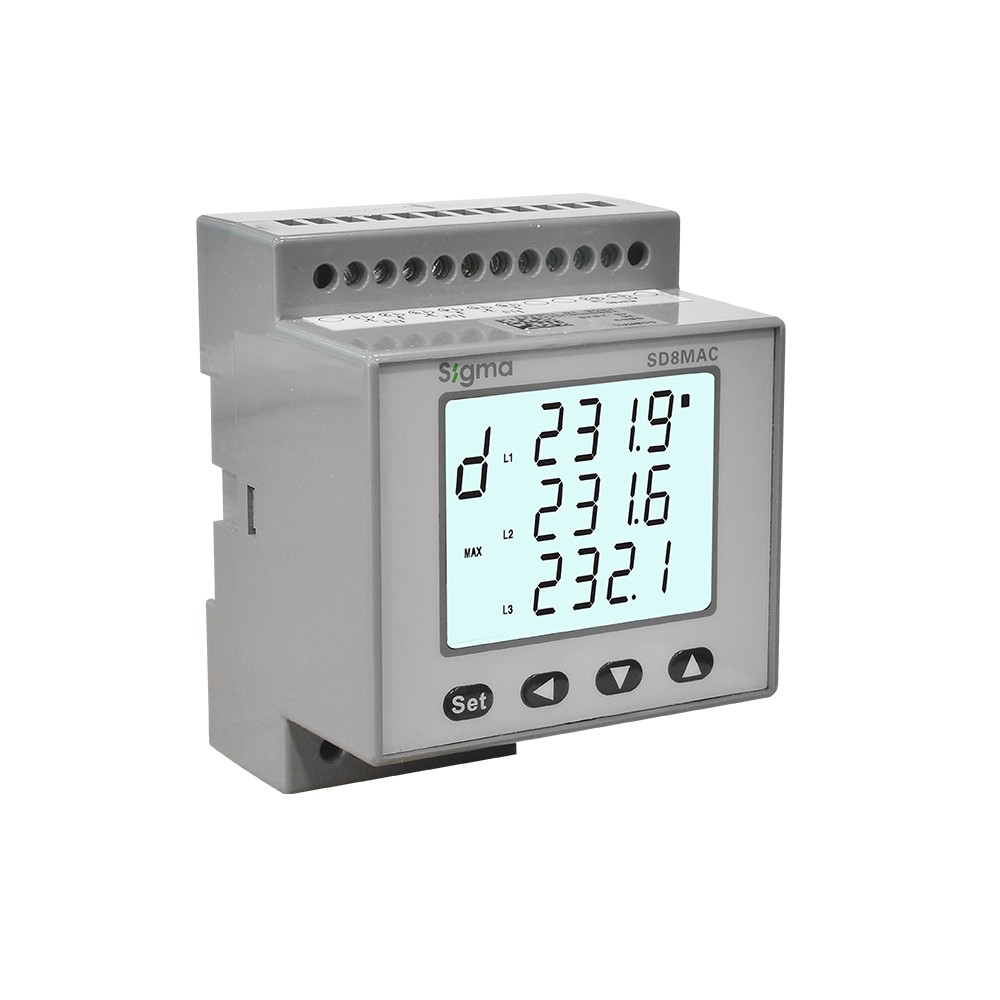

Power Meter

Sigma Power Meters are produced in accordance with TS EN 60051-2 standards and measure the electrical parameters of the network to which they are connected. Thanks to its communication feature, it allows energy to be monitored and recorded.

Technicial Specifications

– RS 485 communication feature

-Class 0.5 measurement accuracy

– Production in 96*96mm size

– Two products suitable for DIN rail mounting and panel cover mounting

– Alarm output, dry contact output

Energy analyzer

Sigma Multi-Functional Network Analyzers are produced in accordance with TS EN 60051-2 standards and measure the electrical parameters of the network to which it is connected. Thanks to its communication feature, it allows energy to be monitored and recorded.

Technicial Specifications

Average – max-min voltage and current values, frequency, active power – reactive power – apparent power, power factor, active and reactive demand values of current, total harmonic distortion (THD) of current and voltage, percentage harmonic current and voltage up to the 31st harmonic allows measurement.

– RS 485 communication feature

– Production in 96*96mm dimensions

– Two products suitable for DIN rail mounting and panel cover mounting

– Alarm output, dry contact output

– Measurement up to the 31st harmonic
