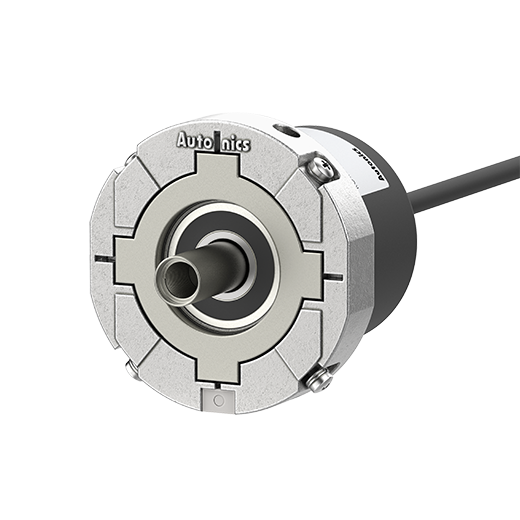

E58S (Sine Wave) Series

58 mm Incremental Rotary Encoders (Sine Wave, Shaft Type)

The E58S series sine wave incremental rotary encoders transmit analog sine wave operational amplifier (op-amp) output for speed regulation and position control. C, D output phase signals can be used to calculate absolute position and A, B output phase signals can be multiplied to offer high precision position control comparable to over 10,000 pulses.

Compare

Description

Main features

Tapered shaft
Analog sine wave operational amplifier (op-amp) output
Power Supply: 5 VDC ±5%

58 mm Diameter Housing

Incremental Type

Sine Wave Output

High Resolution

Operating Temperature

Absolute Position Control and Multiplication Setup Available

The encoders offer up to 2,048 pulses and users can set up multiplication values for A, B output phase signals for high precision position control comparable to over 10,000 pulses. C, D output phase signals can be used to calculate absolute position.

Wide Operating Temperature Range

The encoders offer stable operation in extreme high or low temperatures -20°C to 100°C (compared to previous models: -10°C to 70°C)

Axial/Radial Cable Types Available

The encoders are available in axial or radial cable types in 7 m, 9 m, and 15 m cable lengths, allowing flexible application in diverse environment settings.
