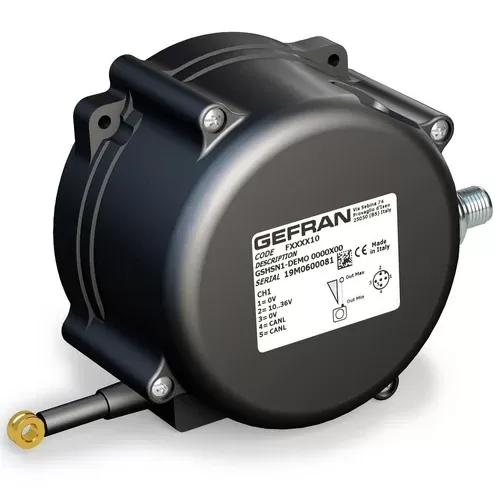

GSH-A 1.8-8.3 m

Wire position transducer with tilt angle measurement

Main features

  • Stroke from 1800 to 8300mm
  • Z-axis angle ±180°
  • CAN Open output
Compare
Categories: , ,

Description

Contactless linear sensor – HALL EFFECT technology –
with embedded single-axis MEMS inclinometer (i.e. single axis Z).
Excellent performance, high IP rating, shock and vibration resistance guarantee sensor performance in typical mobile hydraulic applications, wherever there’s the need to monitor a linear position and a tilt angle at the same time.
The compact design – with only 65mm height – and the CANopen signal ouput as well as the full redundant circuit, both for the linear position and for the tilt angle measurements, make such a sensor a state-ot-the-art multivariable transducer.
