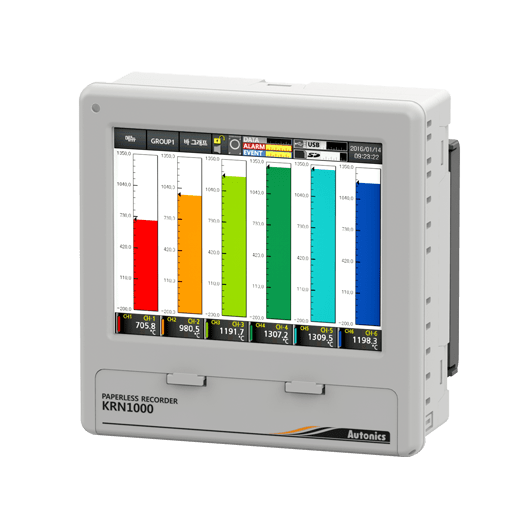

KRN1000 Series

The KRN1000 series paperless recorders feature 5.6-inch TFT color LCD (640×480) touchscreen displays with excellent visibility and intuitive control interface. The recorders can process 27 types of input with high-speed sampling rate up to 25 ms and recording cycle between 1 to 3600 s. Various communication methods are supported along with high capacity storage memory (internal/external). Users can also cycle between 9 different graph types, depending on the required application. The series is available in 4, 8, 12, 16 input channel models with various input/output options.

Compare

Description

  • 5.6-inch TFT color LCD (640×480) touchscreen display with excellent visibility and intuitive control interface
  • Supports 27 input types (thermocouple, RTD, analog voltage and current[shunt])
  • 4/8/12/16 input channel models available
  • Various communication methods (USB, RS422/485, Ethernet) supported
  • 25 to 250ms high-speed sampling, 1 to 3600s recording cycle
  • 200 MB internal memory and external memory support (SD/USB up to 32GB)
  • Store and backup internal data to external memory (SD/USB)
  • 9 different graph types available
  • Various option input/output available : digital input (contact/non-contact), alarm output, transmitter power output
  • Compact, space-saving design (rear length : 69.2mm)



5.6’’ Touchscreen

5.6’’ Touchscreen

Multiple Channels

MultipleChannels

Various Inputs

Various Inputs

Communication Support

CommunicationSupport

9 Different Graph Types

9 DifferentGraph Types

Reduced Rear-Length

ReducedRear-Length

Dedicated Software

DedicatedSoftware

Comprehensive Device Management Program (DAQMaster)

    • DAQMaster is a comprehensive device management program to set parameters and manage monitoring data.
    • Visit our website (www.autonics.com) to download user manual and integrated device management program.
Computer specification for using software, DAQMaster screen - See below for details

5.6-Inch TFT color LCD Touchscreen Display

The 5.6-inch TFT color LCD (640×480) touchscreen display with excellent visibility and intuitive control interface

5.6-Inch color LCD Touch screen

Supports Multiple Input Channels and Various Input Types

KRN1000 supports 27 input types (thermocouple, RTD, analog voltage and current[shunt]).
4/8/12/16 input channel models are available.

Supports Multiple Input Channels and Various Input Types

Various Communication Methods Supported

RS422/485, Ethernet, and USB communication methods are all supported on the KRN1000 series,Providing more flexibility for users.

Various Communication Methods Supported

High Capacity Storage Memory

The recorders come equipped with 200MB internal memory and external memory support (SD/USB up to 32GB)

SD Memory Card

SD Memory Card

USB Memory Storage

USB Memory Storage

9 Different Measurement Graphs

Users can select from 9 different graphs for ideal display of measurement data in various applications.

9 Different Measurement Graphs

Compact, Space-Saving Design

The 69.2㎜ rear-length is up to 50% shorter than other brands, allowing space-saving installation.

Compact, Space-Saving Design
