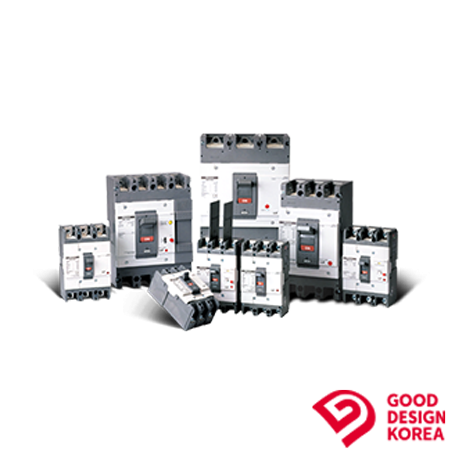

Metasol Molded Case Circuit Breaker
Molded Case Circuit Breaker/Earth Leakage Circuit Breaker
Same external dimensions as MCCB and ELCB
ㅇ Rated Current: 3~1200A
ㅇ Breaking capacity (Icu): 10~85kA
| Type | 30AF | 50AF | 60AF | 100AF | 125AF | 250AF | 400AF | 800AF | 1000AF | 1200AF |
|---|---|---|---|---|---|---|---|---|---|---|
| ABN | – | ABN50c 14kA |
ABN60c 14kA |
ABN100c 18kA |
– | ABN250c 26kA |
ABN400c 37kA |
ABN800c 37kA |
– | – |
| ABN100d 26kA |
||||||||||
| ABN100e 31kA |
||||||||||
| ABS | ABS30c 14kA |
ABS50c 18kA |
ABS60c 18kA |
– | ABS125c 37kA |
ABS250c 37kA |
ABS400c 50kA |
ABS800c 65kA |
ABS1000c 65kA |
ABS1200c 65kA |
| ABH | – | ABH50c 50kA |
– | – | ABH125c 50kA |
ABH250c 50kA |
ABH400c 65kA |
– | – | – |
| ABL | – | – | – | – | ABL125c 60kA |
ABL250c 60kA |
ABL400c 85kA |
ABL800c 85kA |
ABL1000c 85kA |
ABL1200c 85kA |
| Type | 30AF | 50AF | 60AF | 100AF | 125AF | 250AF | 400AF | 800AF | 1000AF | 1200AF |
|---|---|---|---|---|---|---|---|---|---|---|
| EBN | – | EBN50c 14kA |
EBN60c 14kA |
EBN100c 18kA |
– | EBN250c 26kA |
EBN400c 37kA |
EBN800c 37kA |
– | – |
| EBS | EBS30c 14kA |
EBS50c 18kA |
EBS60c 18kA |
– | EBS125c 37kA |
EBS250c 37kA |
EBS400c 50kA |
EBS800c 65kA |
EBS1000c 85kA |
EBS1200c 85kA |
| EBH | – | EBH50c 50kA |
– | – | EBH125c 50kA |
EBH250c 50kA |
EBH400c 65kA |
– | – | – |
| EBL | – | – | – | – | – | – | EBL400c 85kA |
EBL800c 85kA |
– | – |
