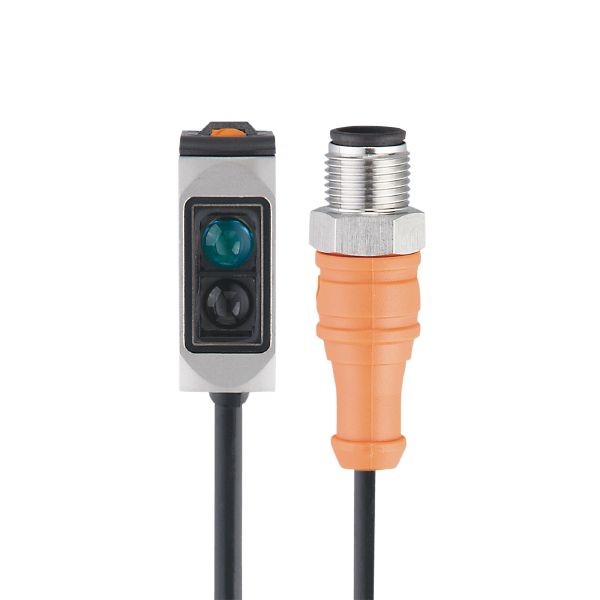

O6H301

  • Robust stainless steel housing for use in the food and beverage industry
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High protection rating for the requirements of harsh industrial environments
  • Particularly interference-immune background suppression even with strongly reflecting backgrounds
  • Intuitive setting of range and output function
Compare
Categories: ,

Description

Diffuse reflection sensor; Range 2…200 mm; Operating voltage 10…30 DC V; 3-wire; PNP; 0.3 m PVC-Cable; M12 Connector; 0.3 m; PVC; Background suppression
Product designation Diffuse reflection sensor
Voltage type DC
Operating voltage DC 10…30 V
Electrical design PNP
Output function light-on/dark-on mode; (selectable)
Lens alignment side lens
Range 2…200 mm
Type of light red light
Connection 0.3 m PVC-Cable; M12 Connector
Materials housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM
Display switching status: 1 x LED yellow; operation: 1 x LED green
Protection IP 65IP 67IP 68IP 69K
Ambient temperature -25…80 °C
Brand ifm electronic gmbh or equivalent
Type O6H301
