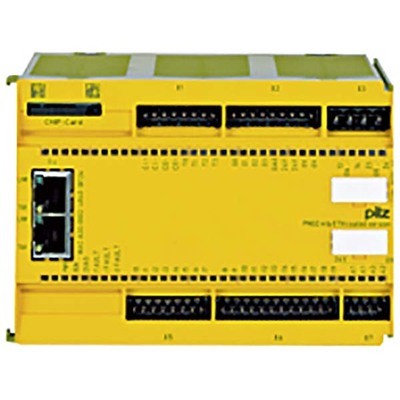

PILZ-773104

Configurable safe small controllers PNOZmulti Classic, base unit, expandable, 2 Ethernet / Modbus TCP interfaces, 20 safe digital inputs, 4 safe semiconductor outputs, 2 safe semiconductor outputs, 2 safe relayoutputs, for enhanced environmental requirements.

Compare

Description

Configurable safety base unit / safe small controller – coated version – expandable – Pilz (PNOZmulti Classic base unit) – PNOZ m1p ETH coated version – 20.4-28.8Vdc (24Vdc nom.) supp. voltage – 20 x safety inputs (24Vdc; 8mA / -3…+5Vdc at “0” / +15…+30Vdc at “1”) + 4 x digital outputs (safety semiconductor outputs; 24Vdc; 2A; 1A when t>50°C) + 1 x digital output (standard aux. semiconductor output; 24Vdc; 0.5A) + 2 x digital outputs (safety rly. output; 6A 240Vac AC-1 or 6A 24Vdc DC-1; 4A 240Vac AC-1 or 4A 24Vdc DC-1 when t>50°C) + 4 x digital outputs (test pulse outputs; 24Vdc; 0.5A) + 1 x digital outputs (standard cascading; 24Vdc; 0.2A) – plug-in/detachable screw or spring-loaded term. connections – with Ethernet communication capability – DIN rail mounting (W27mm) – IP20 – rated for -25…+60°C ambient
