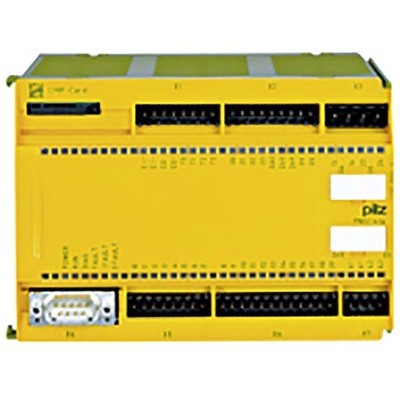

PILZ-773125

Configurable safe small controllers PNOZmulti Classic, base unit, expandable, with burner functionality, interface RS232, 20 safe digital inputs, 4 safe semiconductor outputs, 2 safe relay outputs. CAUTION: Validity of burner and furnace approvals by May 2020. After this date, this device may no longer be used in new plants. It can still be used as a repair device or as a replacement. Successor product: 772102 PNOZ m B1 Burner.

Compare

Description

Configurable safety base unit / safe small controller – expandable – for furnace / burner function – Pilz (PNOZmulti Classic base unit) – PNOZ m3p base unit burner function – 20.4-28.8Vdc (24Vdc nom.) supp. voltage – 20 x safety inputs (24Vdc; 8mA / -3…+5Vdc at “0” / +15…+30Vdc at “1”) + 4 x digital outputs (safety semiconductor outputs; 24Vdc; 2A) + 1 x digital output (standard aux. semiconductor output; 24Vdc; 0.5A) + 2 x digital outputs (safety rly. output; 6A 240Vac AC-1 or 6A 24Vdc DC-1) + 4 x digital outputs (test pulse outputs; 24Vdc; 0.5A) + 1 x digital outputs (standard cascading; 24Vdc; 0.2A) – plug-in/detachable screw or spring-loaded term. connections – with RS-232 communication capability – DIN rail mounting (W27mm) – IP20 – rated for 0…+60°C ambient
