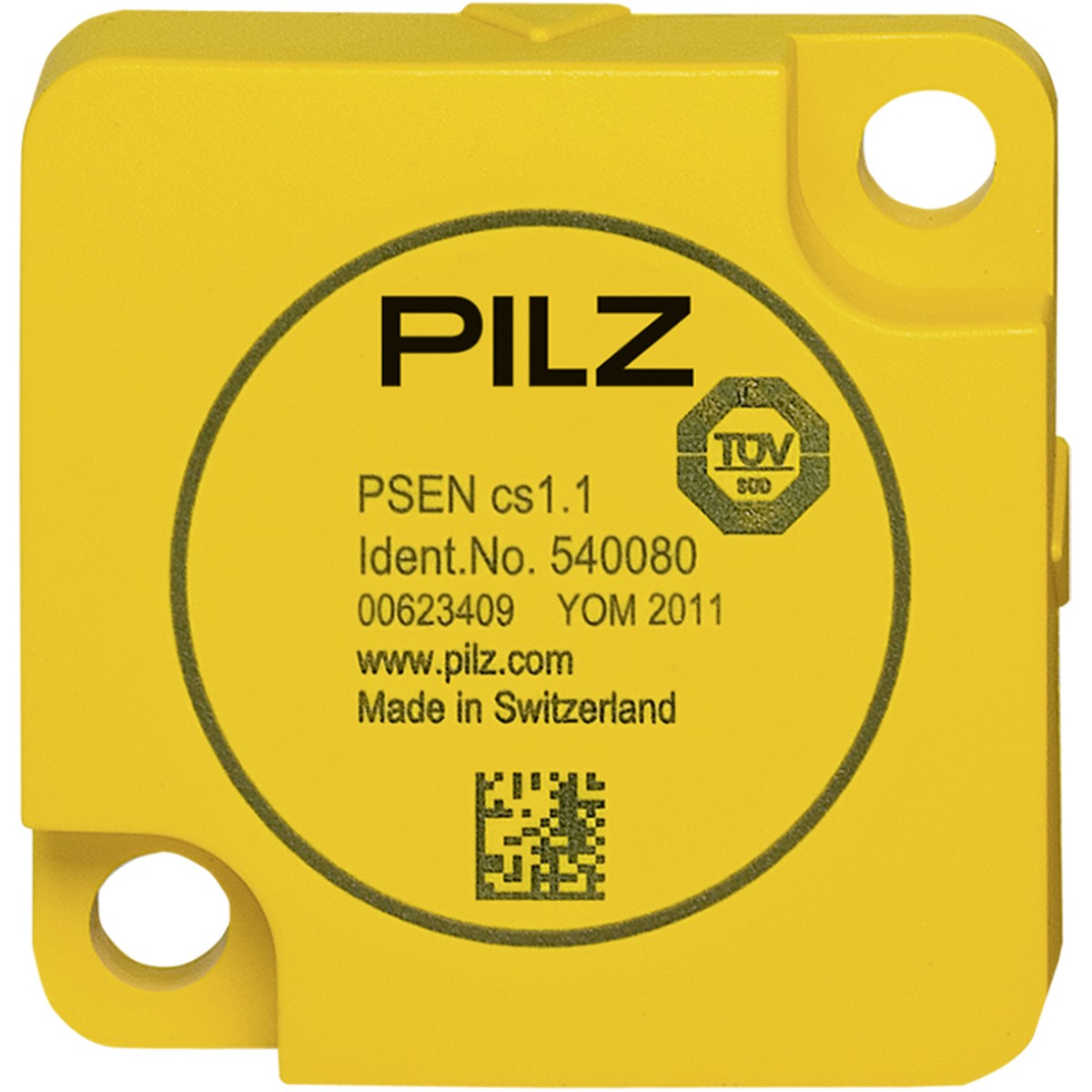

PSEN cs1.1 1 actuator

Actuator for coded safety switch PSENcode 1.x/2.x, PU = 1 piece actuator.
Compare

Description

General data



Approval CE
UKCA
cULus Listed
EAC (Eurasian)
TÜV
Sensor principle Transponder
Coding level to ISO 14119 Low
Transponder coding coded
unit type Actuator



Technical data



Environmental data



Ambient temperature standard EN 60068-2-14
Ambient temperature -25 – 70  °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
EMC to standard … EN 60947-5-3
Vibration to standard … EN 60947-5-2
Acc. shock to standard1 30g
Protection type, housing

Mechanical data



Housing material upper part PBT
Height dimension 11  mm
Width dimension 40  mm
Depth dimension 40  mm
Net weight 20  g
Gross weight 21  g

Transponder



Operating frequency 122 kHz – 128 kHz
