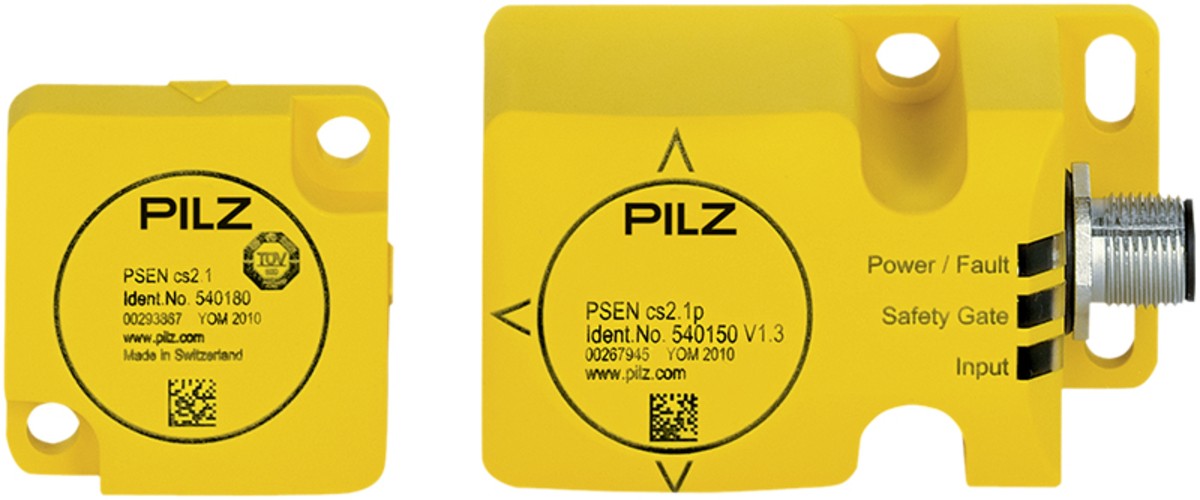

PSEN cs2.1p / PSEN cs2.1 1Unit

RFiD safety switch 2 safe SC outputs, 8-pin M12 male connector, 4 actuation directions, support for SDD, IP67, switching distance 21 mm, Sao = 15 mm, Sar = 40 mm, PU = 1 piece coded switch with actuator. A total of 8 teach-in processes is possible.

Compare

Description

General data



Approval CE
UKCA
cULus Listed
FCC
IC
EAC (Eurasian)
TÜV
Sensor principle Transponder
Coding level to ISO 14119 High
Classification to EN 60947-5-3 PDDB
Transponder coding fully coded
Suitable for series connection yes
unit type Unit



Technical data



Electrical data



Supply voltage (V) 24  V
Type of supply voltage U1 DC
Power consumption DC 2  W

Inputs



Number of inputs 2
DC voltage at input 24 V DC

Semiconductor outputs



Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental data



Ambient temperature standard EN 60068-2-14
Ambient temperature -25 – 70  °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
EMC to standard … EN 60947-5-3
Vibration to standard … EN 60947-5-2
Acc. shock to standard1 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing

Switching distances



Change op. dist. temp.change +-0.01mm/°C

Mechanical data



Type 1 actuator PSEN cs2.1
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 8-pin male
Housing material upper part PBT
Height dimension 75  mm
Width dimension 40  mm
Depth dimension 40  mm
Net weight 150  g
Gross weight 182  g

Transponder



Operating frequency 122 kHz – 128 kHz
