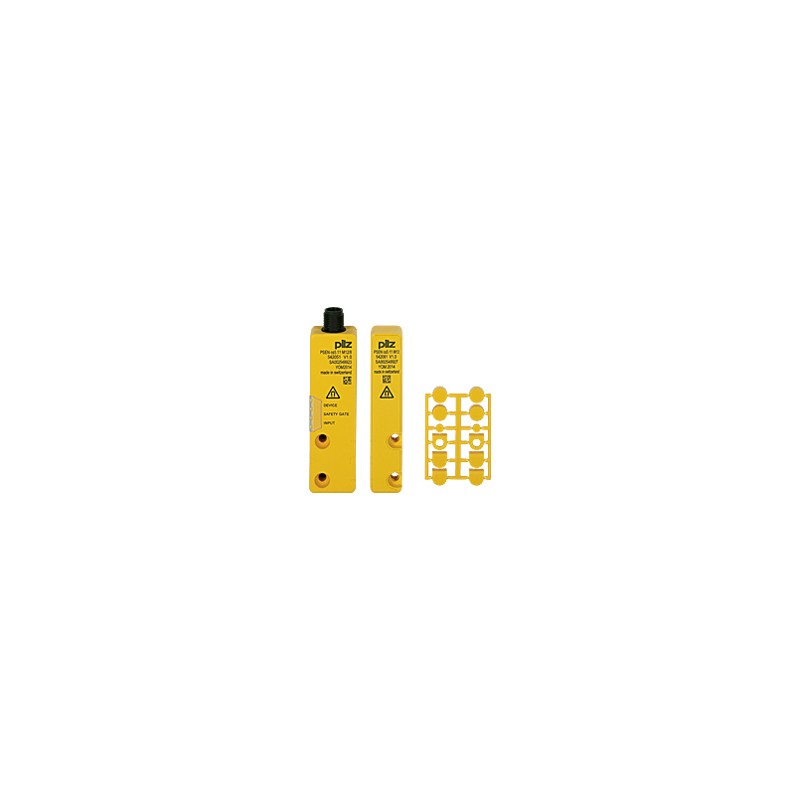

PSEN cs5.11n/PSEN cs5.11 M12 1UNIT

RFiD safety switch, 2 safe SC outputs, male connector M12 5- pin, for applications up to SIL 3 or PL e, IP67, typ. operating distance11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch with actuator.

Compare

Description

General data



Approval CE
UKCA
cULus Listed
FCC
IC
TÜV
ECOLAB
EAC (Eurasian)
Sensor principle Transponder
Coding level to ISO 14119 Low
Classification to EN 60947-5-3 PDDB
Transponder coding coded
Suitable for series connection no
unit type Unit



Technical data



Electrical data



Supply voltage (V) 24  V
Type of supply voltage U1 DC
Power consumption DC 1  W

Semiconductor outputs



Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental data



Ambient temperature standard EN 60068-2-14
Ambient temperature -25 – 70  °C
Max. ambient temp. at Hmax +60 °C
Max. ambient temp. at 2000 m +70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard … EN 60947-5-3
Vibration to standard … EN 60947-5-2
Acc. shock to standard1 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing

Switching distances



Change op. dist. temp.change +-0.02mm/°C

Mechanical data



Holding force magnet 30  N
Type 1 actuator PSEN cs5.11 M12
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 5-pin male
Product material PBT
PA+GF
Polycarbonate
Height dimension 26.4  mm
Width dimension 101.6  mm
Depth dimension 19  mm
Net weight 135  g
Gross weight 155  g

Transponder



Operating frequency 122 kHz – 128 kHz
