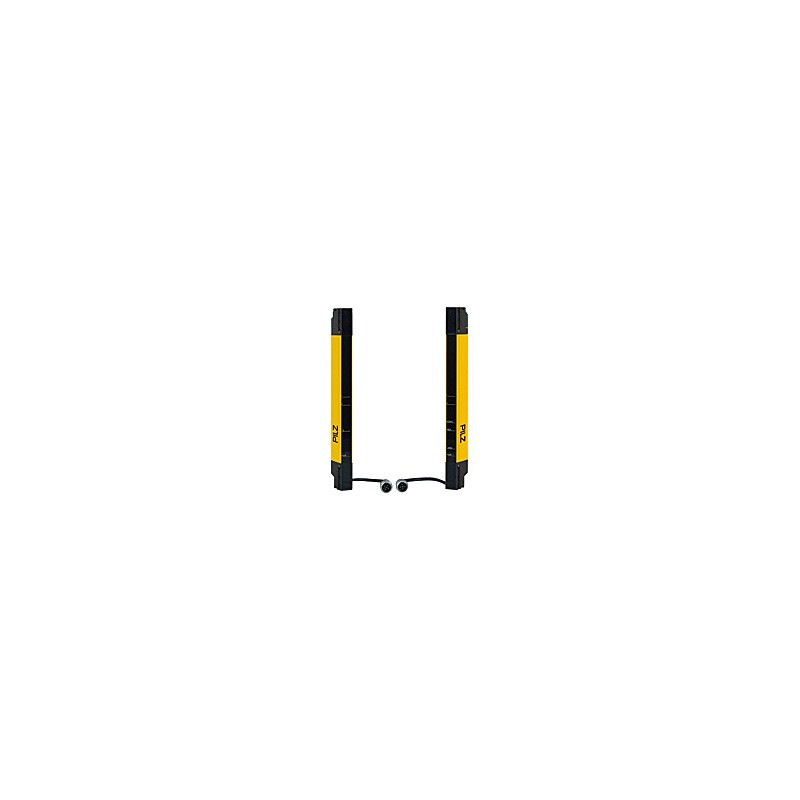

PSEN op4F-SL-14-075/1

Safety light guard, Type 4, PL e, finger protection (resolution 14 mm), protected field height 750 mm. Features: Cascading without dead zone,slimline design. Supply voltage 24 V, connector M12, transmitter: 5- pin, receiver 5-pin. Connection cable is not supplied with the device.

Compare

Description

General data



Approval CE
cULus Listed
TÜV
ESPE type 4
Sensor principle optical
Height of protected field 750  mm
Resolution protection type Finger
Operating range (m) 0.2 – 6  m



Technical data



Electrical data



Supply voltage (V) 24  V
Type of supply voltage U1 DC

Optical data



Used wavelength range 850 nm

Semiconductor outputs



Number of OSSD outputs 2

Environmental data



Ambient temperature 0 – 55  °C
Humidity rating 15 … 95%
Condensation permitted? Not permitted
Vibration to standard … EN 60068-2-6
Acc. shock to standard1 10g
Protection type standard EN 60529
Protection type, housing

Times



Reaction time 13  ms

Mechanical data



Length cable 0.2  m
Material of cable insulation 1 PVC
Bend radius (when laying) K1 1 x Ø
Bend radius, laid cascad.cable 1 x Ø
Max. cable length 20  m
Housing material upper part Aluminium
Material end caps Zamak
Material front screen PMMA
Height dimension 750  mm
Width dimension 15.4  mm
Depth dimension 32.6  mm
Net weight 900  g
Gross weight 1600  g
