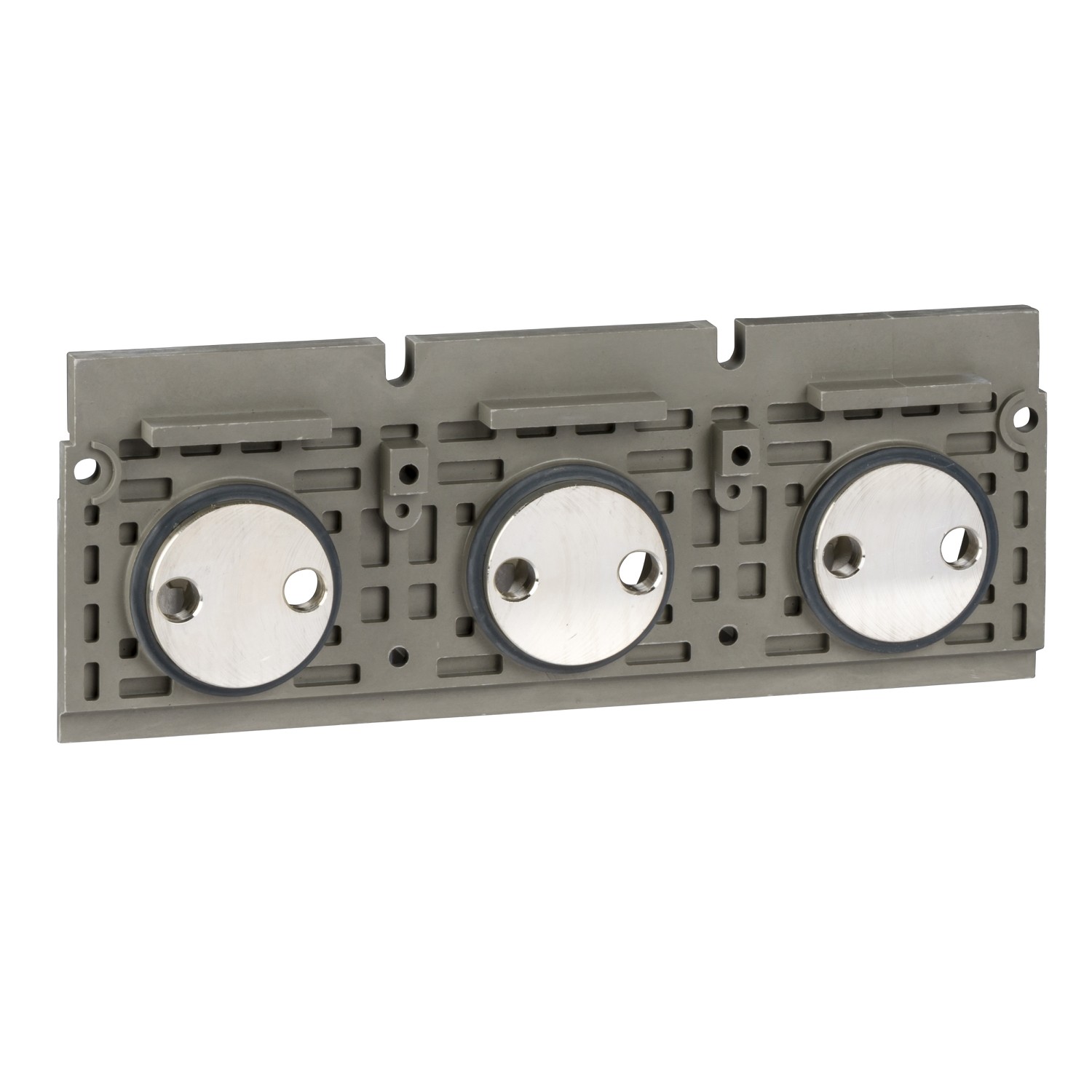

rear connection kit, 630 to 1600 A, vertical and horizontal, fixed circuit breaker, 3 poles, 3 parts

Compare

Description

Main
Range of produc MasterPact NT
ComPacT NS630b…1600 new generation
Product or component type Rear connection
Accessory / separate part category Connection accessory
Range compatibility Masterpact MasterPact NT
ComPact ComPact NS630b…1600
Poles description 3P
Mounting mode Fixed
[In] rated current 630…1600 A



Complementary
Location of connection Rear
localisation on device Top
Bottom
Connection position Horizontal
Vertical
Connection pitch 70 mm
Quantity per set 3
Accessory / separate part category Spare part



Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 8.0 cm
Package 1 Length 20.0 cm
Package 1 Weight 1.331 kg
Unit Type of Package 2 S02
Number of Units in Package 2 4
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.6 kg
